15 Best Digital Oscilloscopes for Engineers and Hobbyists: Top Picks and Reviews
You’re looking for the best digital oscilloscopes to diagnose electronic issues with precision. Top picks include the HANMATEK HO11 and FNIRSI DST-210 for handheld convenience. For high-performance needs, consider the RIGOL DHO804 or Hantek DSO2C10. You’ll find the perfect fit among these options, and exploring further will reveal more details about their features and capabilities.
Key Takeaways
- Digital oscilloscopes offer 5mV/div to 20V/div sensitivity.
- 50 MHz bandwidth and 4 channels are key features.
- High-resolution displays facilitate accurate waveform visualization.
- Touch screens provide intuitive interfaces for control.
- Devices combine oscilloscope and multimeter functions optionally.

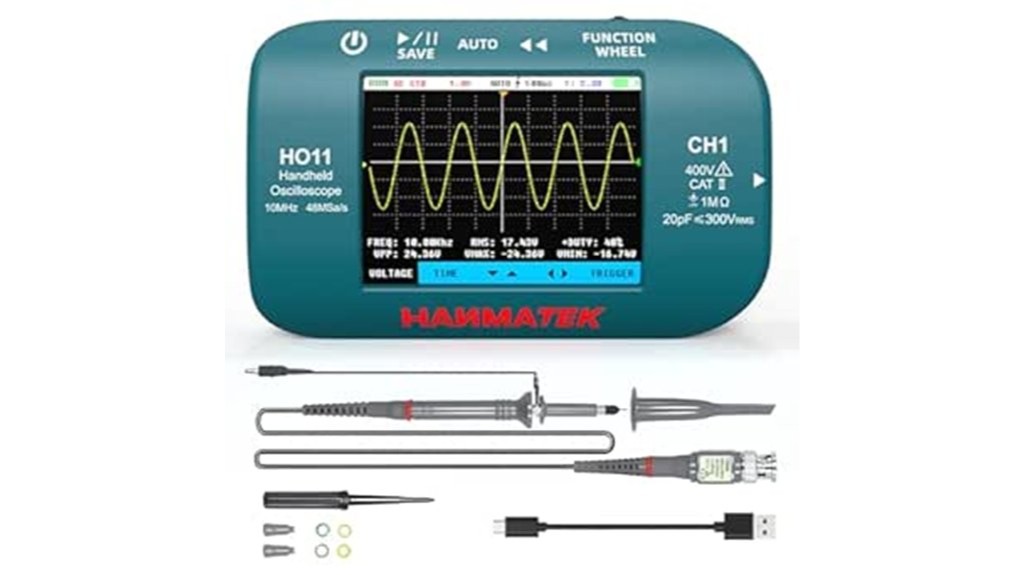

HANMATEK HO11 Handheld Digital Oscilloscope
If you’re an engineer who’s always on the go, the HANMATEK HO11 Handheld Digital Oscilloscope is a top choice, thanks to its portability and high-performance capabilities. You’ll capture precise waveforms in real-time with its 10MHz bandwidth and 48MSa/s sampling rate. It’s lightweight, weighing 166g, and has a 1800mAh rechargeable battery, making it perfect for extended fieldwork use. You can measure voltages up to ±400V and navigate easily with its 2.8″ TFT display.
- Superior 10MHz Bandwidth & 48MSa/s Sampling Rate – Equipped with industry-leading bandwidth and sampling capabilities, the HO11 captures precise waveforms in real time, ensuring no detail is missed during diagnostics or troubleshooting.
- Multi-Range Voltage Measurement up to ±400V – The dual probe attenuation (X1 and X10) supports a wide range of voltage inputs, from ±40V to ±400V, making it versatile for both high and low-voltage testing scenarios.
- Portable, Lightweight & USB Rechargeable – Engineered for professionals on the move, this oscilloscope weighs just 166g and features an 1800mAh rechargeable lithium battery with a convenient Type-C charging interface for extended use in the field.
- Brilliant 2.8" TFT Full-Color Display – The high-resolution, full-view display ensures you can monitor signals clearly, even in bright environments, while intuitive menu navigation simplifies operations for beginners and experts alike.
- Advanced Edge Triggering with Auto, Normal & Single Modes – Precision in signal capture is enhanced with customizable trigger modes, ensuring consistent and reliable performance when analyzing fluctuating or intermittent signals.

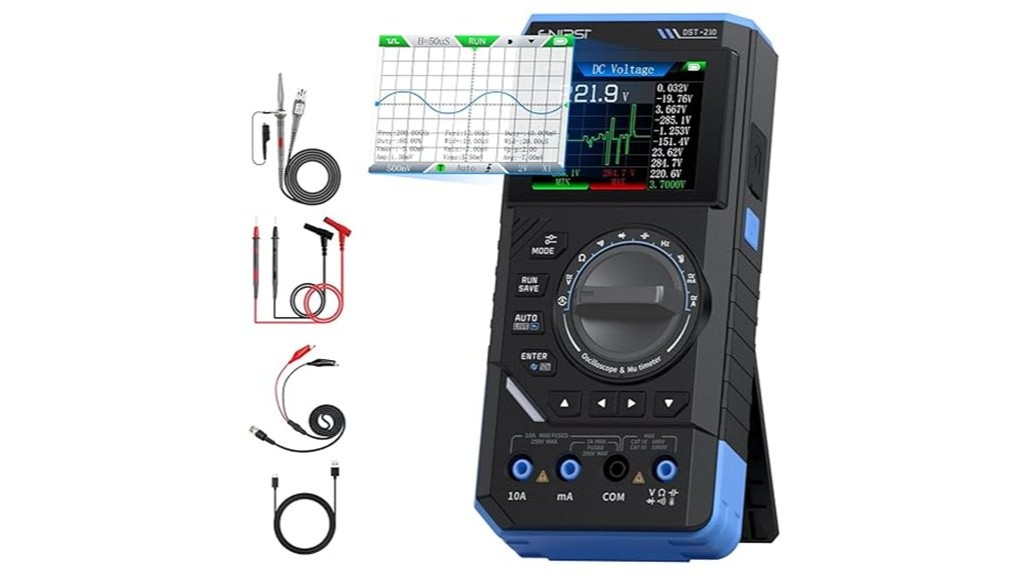

FNIRSI DST-210 Handheld Digital Oscilloscope Multimeter
You’re looking for a versatile tool that combines the functions of an oscilloscope and a multimeter, and the FNIRSI DST-210 Handheld Digital Oscilloscope Multimeter is a top contender. It offers a 10MHz bandwidth, 48MS/s sampling rate, and 400V max voltage. You’ll also get a 19999-count digital multimeter and a DDS signal generator with 13 waveforms up to 50KHz. This device is ideal for field work and automotive diagnostics, making it a great choice for engineers and hobbyists.
- 【Oscilloscope Multimeter】FNIRSI DST-210 handheld oscilloscope 10 MHz bandwidth 48 MSa/s sampling rate, 400 V max voltage. 10 mV/div–10 V/div Vertical sensitivity. Supports waveform image save/export for efficient electronic circuit diagnosis
- 【19999-count Digital Multimeter】Curve recording, max/min value display. Measures AC/DC voltage current, resistance, capacitance, frequency, diode, and temperature. Includes continuity test, live/neutral detection, auto range, and data hold
- 【DDS Signal Generator】DDS signal generator outputs 13 waveforms up to 50 KHz. Adjustable amplitude range: 0.1 V–3.0 V. Ideal for waveform simulation and signal testing in electronics and automotive repair
- 【User-Friendly】2.8-inch color TFT screen with day/night themes. Adjustable brightness and interface modes. Includes 3000 mAh rechargeable battery, Type-C charging, auto power-off (15 min to 1 hour)
- 【Convenient Function Dial】Multimeter function dial allows fast mode switching and precise control. Designed for stable handling and improved measurement efficiency in field work and automotive diagnostics

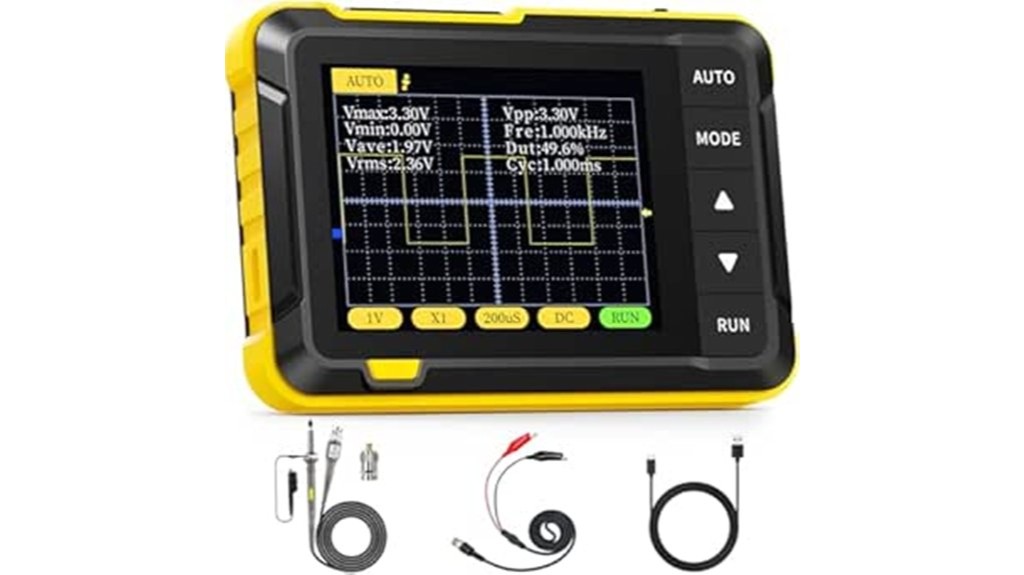

FNIRSI DSO152 Oscilloscope, Portable Digital Oscilloscope Kit
Engineers on-the-go will appreciate the FNIRSI DSO152 Oscilloscope’s portability, making it an ideal choice for those who need a reliable, compact device for maintenance and R&D tasks. You’ll get a 2.8-inch HD LCD display and a 2.5MS/s sampling rate. It’s lightweight, easy to carry, and has a long-lasting 1000mAh battery, allowing you to work efficiently on-site.

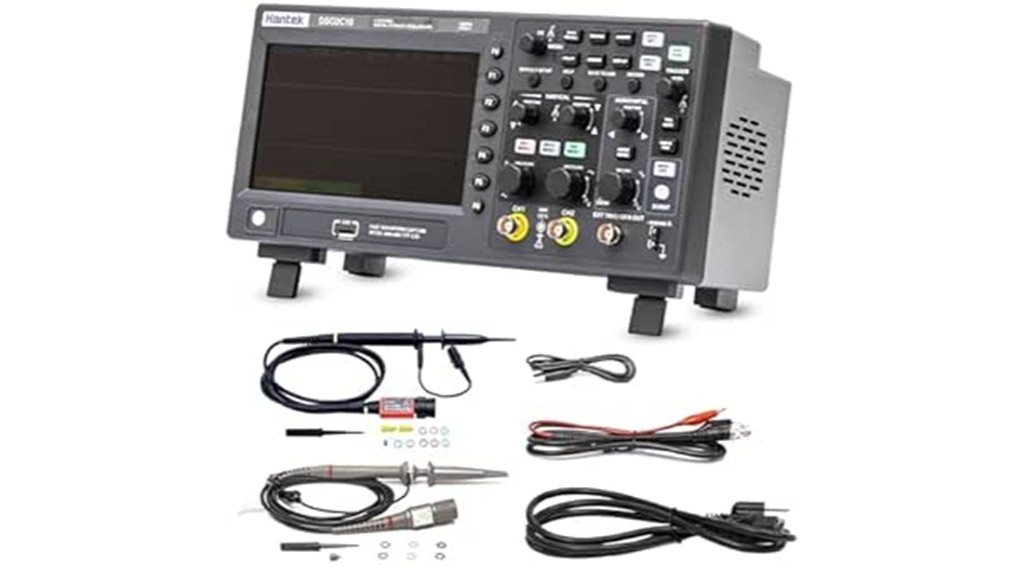

Hantek DSO2C10 Digital Storage Oscilloscope
The Hantek DSO2C10 Digital Storage Oscilloscope stands out with its arbitrary waveform output, a key feature that makes it an ideal choice for professionals who require a high degree of customization and control. You’ll appreciate its 100MHz bandwidth, 1GSa/s sampling rate, and 8M memory depth. It’s suitable for various applications, including communication, aerospace, and research. With 14 trigger modes and 5 serial protocol triggers, you can easily analyze complex signals.
Best For: professionals and researchers in fields such as communication, aerospace, and education who require a high degree of customization, control, and analysis of complex signals in their work.
Pros:
- The Hantek DSO2C10 Digital Storage Oscilloscope has an arbitrary waveform output, allowing for a high degree of customization and control.
- It features a 100MHz bandwidth, 1GSa/s sampling rate, and 8M memory depth, making it suitable for analyzing complex signals.
- The device has 14 trigger modes and 5 serial protocol triggers and decodes, providing flexibility in signal analysis.
Cons:
- The package weight of 5.95 Pounds may be considered heavy for some users, making it less portable.
- The high voltage probe may require additional caution and handling, potentially limiting its use for inexperienced users.
- The device’s suitability for specific applications may depend on the user’s expertise and familiarity with similar equipment, potentially creating a learning curve for new users.
- Cost-effective economy oscilloscope.
- Support arbitrary waveform output, 14 kinds of trigger modes, standard with 5 kinds of serial protocol triggers and decodes.
- Useful commissioning instrument for various fields such as communication, aerospace, national defense, embedded systems, computers, research and education.
- Package weight of the Product: 5.95 Pounds

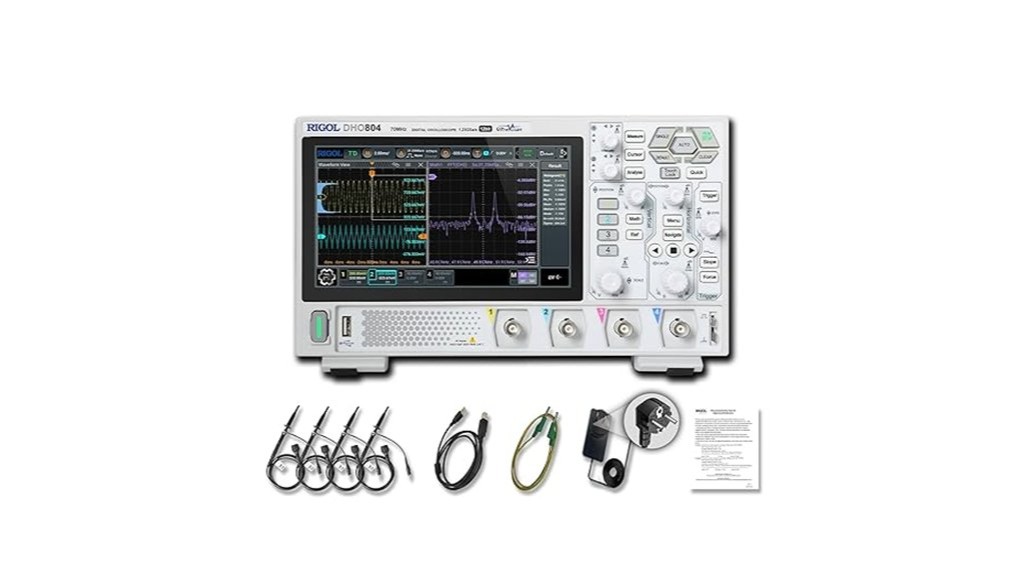

RIGOL Digital Oscilloscope DHO804
High-frequency signal analysis is your top priority, and that’s where the RIGOL Digital Oscilloscope DHO804 shines with its 70MHz frequency band and 1.25 GSa/s sample rate. You’ll appreciate its 12-bit vertical resolution and 4 analog channels. It captures waveforms at 1 million wfms/s, making it ideal for demanding applications.
- 【Key Specs】70 MHz digital oscilloscope with 4 analog channels, 1.25 GSa/s sampling, 12-bit vertical resolution and up to 25 Mpts memory depth—helps correlate multiple rails and timing signals with fine vertical detail.
- 【UltraAcquire & Search】UltraAcquire up to 1,000,000 wfms/s; 256-level intensity grading plus waveform search/navigation helps find intermittent glitches and review anomalies quickly using event/time/frame navigation.
- 【FFT & Decode】Peak detect captures glitches down to 1.6 ns; math includes FFT up to 1 Mpts, filters, and 41 automatic measurements. Standard serial trigger/decode supports CAN, RS232/UART, I2C, SPI and 4-bit parallel decode using analog channels.
- 【Connectivity & SCPI】LAN supports LXI‑C, browser Web Control and standard SCPI commands. USB Host/Device and HDMI improve documentation, data export and external display for lab or teaching use.
- 【Applications】Digital oscilloscope for switching power ripple/noise checks, embedded bring-up, sensor interface validation and protocol troubleshooting; 7" 1024×600 touch screen and Flex Knob support fast daily measurements.

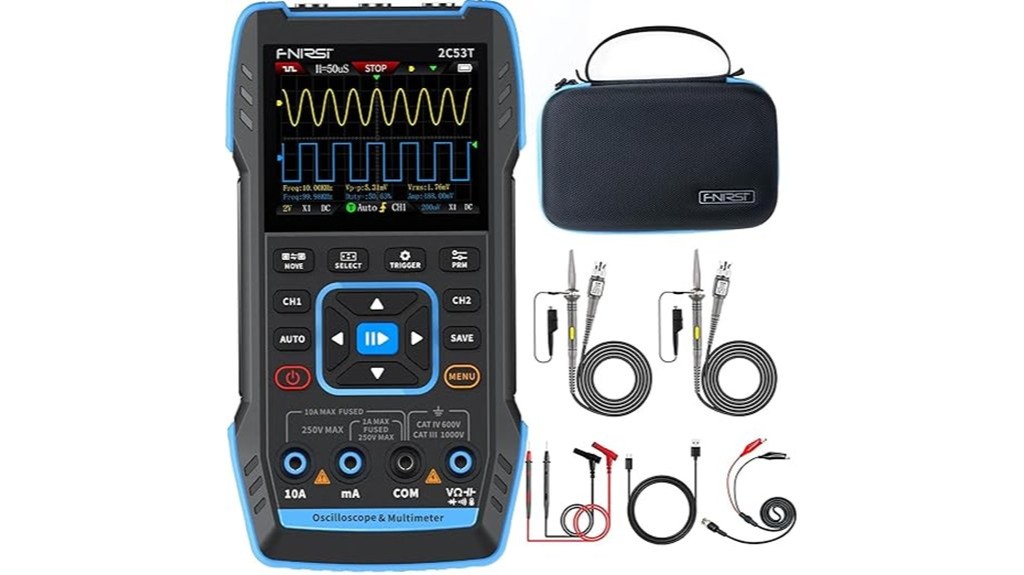

FNIRSI 2C53T Handheld Oscilloscope & Multimeter
You’re looking for a handheld device that combines multiple functions, and FNIRSI’s 2C53T oscilloscope and multimeter is a top contender. It features a 50MHz bandwidth, 250MS/s sampling rate, and 2-channel oscilloscope. You’ll also get a 4.5-digit multimeter and signal generator with 13 waveforms. The device has a 2.8-inch LCD display and 3000mAh battery, making it portable and convenient. It’s a great option for engineers and hobbyists who need a versatile tool.
- 【Newly Version】The 2C53T is an upgraded version of the 2C23T, which improves the measuring range and adds math operation，cursor measurement，persistence mode，XY mode features
- 【2 Channel Oscilloscope】50 MHz bandwidth, 250 MSa/s sampling rate, 1 Kpts record depth, automatic measurement function, max voltage 400 V, vertical sensitivity 10mV/div-10V/div , support waveform image storage and export
- 【4.5-Digit 19999 Counts Multimeter】AC Voltage: 0-750 V, DC Voltage: 0-999.9 V, DC/AC Current: 0-9.999 A, Resistance: 0-19.99 MΩ, Capacitance: 0-99.99 mF, Continuity Measurement. Multi-function meter for professionals, schools and hobbyists
- 【Signal Generator】The maximum waveform output frequency can reach 50 kHz and a step of 1 Hz, and can output 13 waveforms
- 【Save function】one-click save, screening function. You can upload the saved image by connecting to PC via Type-C. You can easily compare the waveforms by displaying the reference waveform and the measured waveform on the same screen

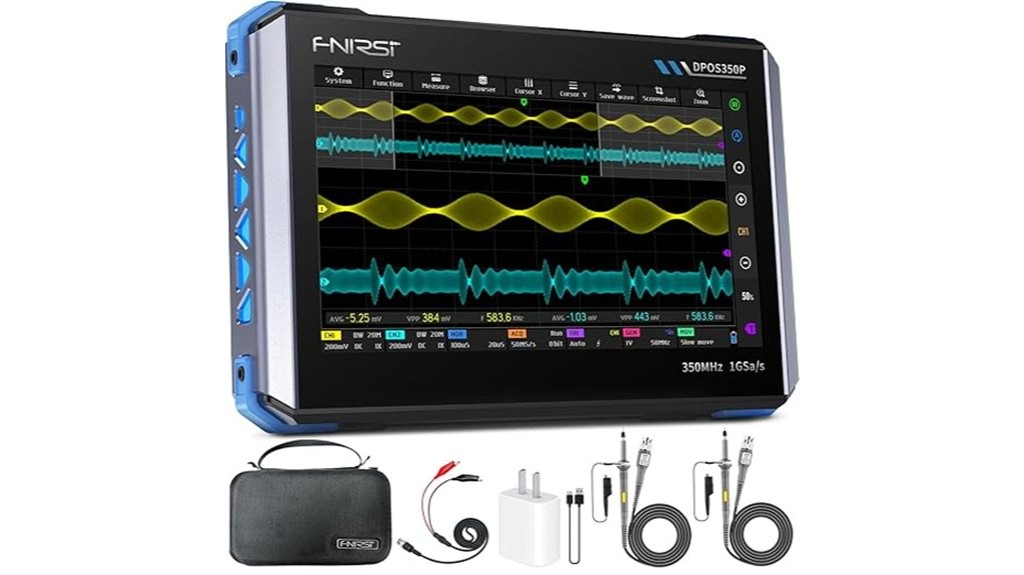

FNIRSI DPOS350P 4-in-1 Tablet Oscilloscope and Spectrum Analyzer
Engineers seeking a versatile, portable device will find FNIRSI’s DPOS350P 4-in-1 tablet oscilloscope and spectrum analyzer a top choice, thanks to its 350MHz bandwidth and 1 GSa/s sampling rate. You’ll get a 7″ touch screen and 2-channel oscilloscope with 47Kpts depth. It also features a spectrum analyzer, frequency response analyzer, and DDS signal generator, making it a powerful tool for lab and field use.
- 【4-in-1】FNIRSI DPOS350P handheld oscilloscope 350 MHz bandwidth, 1 GSa/s, 47 Kpts depth, 8-16-bit resolution, 50,000 wfms/s refresh. 2 channel oscilloscope, 7" touchscreen, digital phosphor, X-Y mode, 2 mV/div ultra-sensitive, ZOOM, 12 auto measurements, cursor
- 【Spectrum Analyzer】FFT-based analysis from 200KHz–350MHz with 4K–32K FFT length. Includes harmonic markers, cursor readouts, real-time 2D/3D waterfall view for EMI checks and signal integrity analysis
- 【Frequency Response Analyzer】100 Hz–50 MHz frequency range, 0–5Vpp amplitude, +2.5 V to -2.5 V offset, 20–500 frequency Count. Measures gain/phase/frequency—ideal for Bode plots, loop stability tests, and analog filter tuning
- 【DDS Signal Generator】Outputs 14 standard waveforms and clipped waveforms. 0–50 MHz frequency range, 1 Hz resolution. 0–5 Vpp amplitude, -2.5 V to +2.5 V offset. Adjustable duty cycle from 0.1% to 99.9%. Supports 500 custom clipping waveforms
- 【Smart Features & Portability】Stores 500 waveforms + 90 screenshots. Supports FFT display, 150M/20M hardware bandwidth limiter, auto power-off. 8000 mAh battery, USB-C charging. Engineered for lab and field use

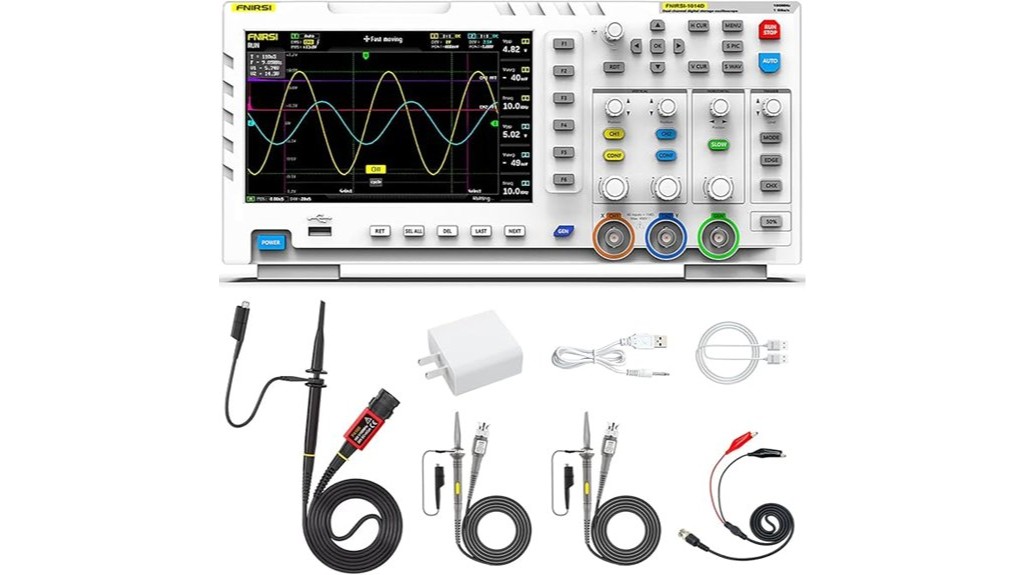

FNIRSI 1014D Digital Oscilloscope and Signal Generator
When it comes to digital oscilloscopes, having a built-in signal generator can be a game-changer, and that’s exactly what the FNIRSI 1014D offers. You get a 2-channel oscilloscope with 100MHz bandwidth and 1GSa/s sampling rate. It also features a DDS signal generator with 14 kinds of function signals and customizable chopping signals. The device has a 7-inch LCD screen and 1GB storage space, making it a versatile tool for engineers and hobbyists. You’ll appreciate its real-time sampling and cursor measurement functions.
- Real-Time Sampling Oscilloscope:Fnirsi oscilloscope has a real-time sampling rate of up to 1GSA/S and an analog bandwidth of 100MHZ * 2. Fnirsi oscilloscope can be triggered by single/normal/automatic, it can be used for both periodic analog signals and aperiodic digital signals
- DDS Function Signal Generator : Chopping output 2.5 VPP, signal frequency steps are 1 HZ, support 14 kinds of function signals and a customizable chopping signal, which can store up to 1000 customized chopping signals
- Easily Measuring : Cursor measurement function, when manually reading amplitude-frequency parameters, you do not need to read the background scale unit and quantity, and you can directly get the peak-to-peak value and frequency without conversion
- Easy to Observe : Equipped with efficiency one-button AUTO, adaptive 25%, 50%, 75% trigger, can display the measured waveform without cumbersome adjustment; the display is equipped with a 7-inch 800*480 resolution LCD screen
- Lissajous Graphic Display & FFT Viewing: Lissajous graphic display function can be used to compare the amplitude, frequency and phase of the two sets of signals. FFT viewing function can roughly estimation of the harmonic content of the signal

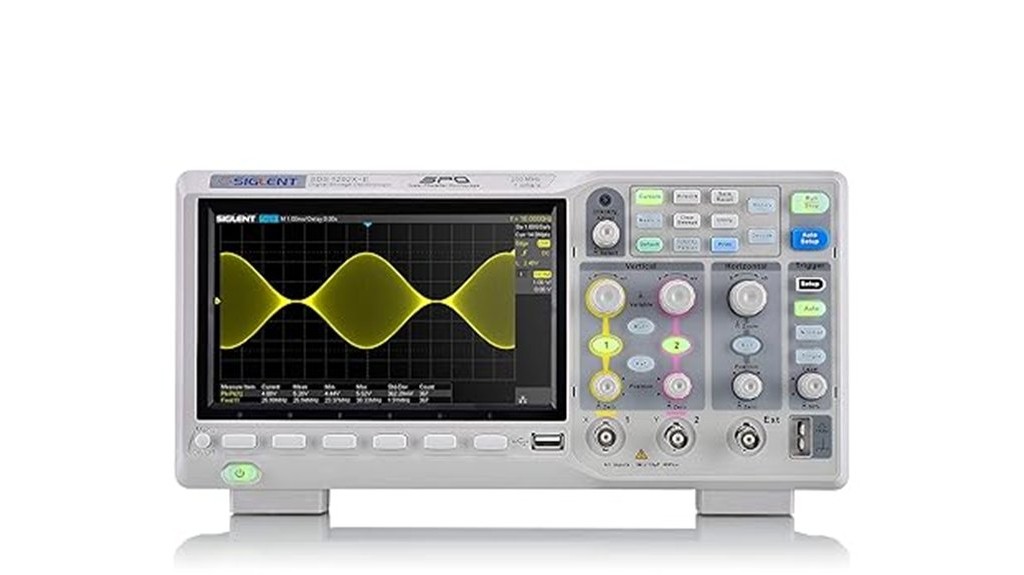

Siglent Technologies SDS1202X-E Digital Oscilloscope
The Siglent Technologies SDS1202X-E Digital Oscilloscope stands out as a top choice for those who require high-performance signal analysis, because it offers a real-time sampling rate of 1 Gsa/s, which enables you to capture complex waveforms with precision. You’ll get 14 Mpts record length and 256-level intensity grading display. It supports multiple serial bus triggering and decoding, making it a great option for engineers who need advanced features at a competitive price.
- Country of origin : China
- Real-time sampling rate up to 1 gsa/use
- IRecord length up to 14 Mpts
- Standard serial bus triggering and decode, supports iic, spi, uart, Rs232, can, and lin
RIGOL Digital Oscilloscope DHO802
High-frequency signal analysis is your top priority, and that’s where the RIGOL Digital Oscilloscope DHO802 shines – it’s a high-quality choice for you if you need a device with a 70MHz frequency band and 12-bit vertical resolution. You’ll get 1.25 GSa/s sampling rates and 25 Mpts storage depth, making it suitable for your needs. It features a 7-inch touch screen and various ports, including USB and HDMI.
- 【Key Specs】70 MHz digital oscilloscope with 2 analog channels + EXT TRIG input, 1.25 GSa/s sampling, 12-bit resolution and up to 25 Mpts memory depth—useful for long acquisitions and small ripple/noise inspection.
- 【UltraAcquire & Visibility】UltraAcquire up to 1,000,000 wfms/s with 256-level intensity grading; waveform search/navigation and event table reduce time spent scanning long captures for intermittent glitches.
- 【Trigger & Decode】Peak detect captures glitches down to 1.6 ns; 41 auto measurements and FFT up to 1 Mpts with filters. Standard serial trigger/decode supports CAN, RS232/UART, I2C, SPI and 4-bit parallel decode using analog channels.
- 【Remote Control SCPI】LAN offers Web Control and LXI‑C; standard SCPI command set supports automation. USB Host/Device and HDMI help save data and connect external displays for documentation and training.
- 【Applications】Digital oscilloscope for SMPS ripple/noise, embedded bring-up and CAN/UART/I2C/SPI bus troubleshooting; EXT TRIG supports flexible triggering, and 7" touch display improves daily bench use.
FNIRSI DPOS350P 4-in-1 Handheld Oscilloscope and Spectrum Analyzer
You’re looking for a versatile, portable tool that packs a punch – that’s where FNIRSI’s DPOS350P 4-in-1 handheld oscilloscope and spectrum analyzer comes in. It offers a 350MHz bandwidth, 1 GSa/s sampling rate, and 7″ touch screen. You’ll get 2-channel oscilloscope features, a spectrum analyzer, and a signal generator, making it ideal for engineers and hobbyists who need a compact, all-in-one device.
- 【4-in-1】FNIRSI DPOS350P handheld oscilloscope 350 MHz bandwidth, 1 GSa/s, 47 Kpts depth, 8-16-bit resolution, 50,000 wfms/s refresh. 2 channel oscilloscope, 7" touchscreen, digital phosphor, X-Y mode, 2 mV/div ultra-sensitive, ZOOM, 12 auto measurements, cursor
- 【Spectrum Analyzer】FFT-based analysis from 200KHz–350MHz with 4K–32K FFT length. Includes harmonic markers, cursor readouts, real-time 2D/3D waterfall view for EMI checks and signal integrity analysis
- 【Frequency Response Analyzer】100 Hz–50 MHz frequency range, 0–5Vpp amplitude, +2.5 V to -2.5 V offset, 20–500 frequency Count. Measures gain/phase/frequency—ideal for Bode plots, loop stability tests, and analog filter tuning
- 【DDS Signal Generator】Outputs 14 standard waveforms and clipped waveforms. 0–50 MHz frequency range, 1 Hz resolution. 0–5 Vpp amplitude, -2.5 V to +2.5 V offset. Adjustable duty cycle from 0.1% to 99.9%. Supports 500 custom clipping waveforms
- 【Smart Features & Portability】Stores 500 waveforms + 90 screenshots. Supports FFT display, 150M/20M hardware bandwidth limiter, auto power-off. 8000 mAh battery, USB-C charging. Engineered for lab and field use
BSIDE 2 Channel Digital Handheld Oscilloscope Multimeter Signal Generator
Engineers seeking a versatile, portable tool will find the BSIDE 2 Channel Digital Handheld Oscilloscope Multimeter Signal Generator to be an excellent choice, thanks to its 3-in-1 design, which combines a dual-channel 50MHz bandwidth oscilloscope, a 20,000 counts multimeter, and a single-channel signal generator. You’ll get a 3.98-inch color screen, real-time sampling rate of 250MSa/s, and it’s shockproof and drop-proof. It’s a great option for those who need a reliable, portable lab oscilloscope.
- 3-in-1 Handheld Oscilloscope: This is a dual-channel 50MHz bandwidth 250MSa/s real-time sampling rate oscilloscope + 20,000 counts multimeter + single-channel signal generator outputting 7 types of waveforms (0Hz-2MHz) It is a 3-in-1 full-featured and highly practical oscilloscope. This professional oscilloscope can meet different electrical testing needs.
- 3.98-inch full-view colour screen: this oscilloscope is a 3.98-inch TFT full-view 480 * 320 resolution IPS full-screen display. LCD colour screen, more convenient to use and easy to read the measurement results, can let you have a better visual experience.
- Support flexible current clamp: support flexible coil, can measure 2000A AC current, can let you more safe and convenient test large current. Flexible coil is soft and flexible, stable performance, can be more flexible and accurate testing. This oscilloscope multimeter with flexible coil can be used as a clamp meter, which is perfect for narrow environments and cable-intensive places.
- 5000mA Large Capacity Battery: This oscilloscope is equipped with a 5000mA rechargeable lithium battery, which can provide longer battery life. Whether using an oscilloscope or a multimeter, there is no need to worry about battery life issues. The oscilloscope mode can last for 10 hours, and the multimeter mode can last for 20 hours.
- Soft silicone protection with EVA handbag: oscilloscope multimeter with full-body soft silicone sheath, shockproof and drop-proof, durable, silicone buttons, super-tip silicone pens, with high-grade texture handbag, easy to go out and carry, both good-looking and practical.

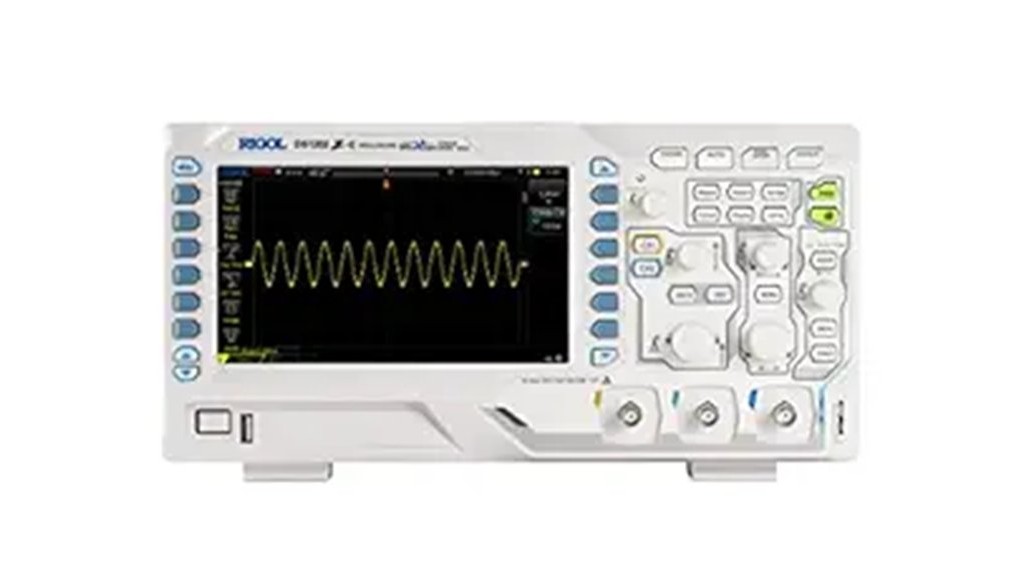

Rigol DS1202Z-E Digital Oscilloscope
Rigol’s DS1202Z-E Digital Oscilloscope stands out with its impressive 1 GSa/s sampling rate, making it an ideal choice for professionals who require precise waveform analysis. You’ll get 200 MHz bandwidth, 2 channels, and 24 Mpts memory depth. It captures up to 30,000 waveforms per second and records up to 60,000 frames in real-time, enabling advanced technical analysis.
- 【Core Specs】200 MHz digital oscilloscope with 2 analog channels and external trigger input, up to 1 GSa/s real-time sample rate and standard deep memory up to 24 Mpts (12 Mpts dual-channel) for longer captures at higher sample rate.
- 【Waveform Capture & Display】Up to 30,000 wfms/s waveform capture rate helps reveal intermittent glitches; 7" WVGA (800×480) TFT with intensity graded color display provides a digital-phosphor style view for jitter and noise visibility.
- 【Record/Playback & Decode】Hardware real-time waveform recording and playback up to 60,000 frames supports event review. Serial bus trigger and decoding functions support RS232/UART, I2C and SPI for embedded troubleshooting.
- 【Connectivity & Remote】Standard interfaces include USB Host, USB Device and LAN (LXI), plus AUX output (TrigOut/PassFail) for bench integration and documentation workflows.
- 【Applications】Digital oscilloscope for electronics debugging, education labs, power and embedded bring-up; deep memory and capture rate help you keep both the big picture and fine details in long time captures.

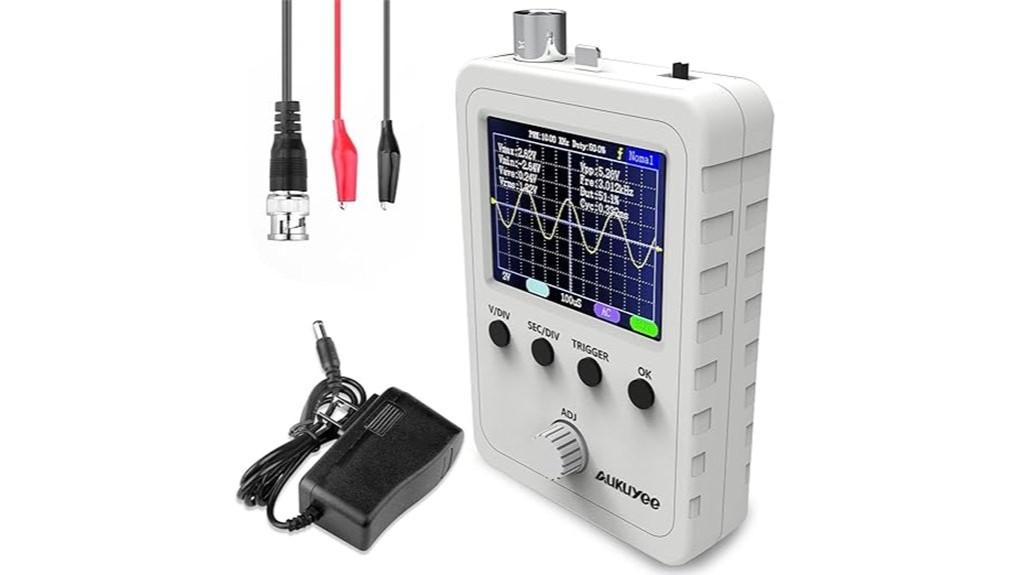

Oscilloscope Handheld Digital Oscilloscope Kit
When it comes to tackling complex projects, a handheld digital oscilloscope kit is a game-changer, offering extended sensitivity with a range of 5mV/div to 20V/div. You’ll appreciate its handheld capability and rotary encoder for quicker parameter adjustment. The kit includes an assembled oscilloscope, BNC-clip cable, and power supply, making it ready to use. You can calibrate it before use, and it features separate analog and digital circuits.
Best For: electronics engineers, students, and hobbyists who need a portable and easy-to-use oscilloscope for measuring and analyzing electrical signals in various projects and applications.
Pros:
- The handheld digital oscilloscope kit offers extended sensitivity with a range of 5mV/div to 20V/div, making it suitable for a wide range of applications.
- The kit includes an assembled oscilloscope, BNC-clip cable, and power supply, making it ready to use right out of the box.
- The rotary encoder allows for quicker parameter adjustment, making it easier to navigate and use the device.
Cons:
- The device requires calibration before use, which may require some technical expertise and time.
- The separate analog and digital circuits may require more complex troubleshooting and repair if issues arise.
- The kit may not be suitable for very high-frequency or high-voltage applications, due to its limited range and sensitivity.
- UPGRADED VERSION - Please Calibrate the oscope Before Use! The sensitivity of Q15001 has been extended in both directions and is higher and wider. It reaches 5mV/div - 20V/div. Also, this updated version can be handheld.
- DESIGNING TO YOUR NEEDS - Display and MCU are mounted on the same board (mainboard) to avoid using inter-board pin-headers. Analog channel is placed on a separate board that contains most user install parts, so the analog and digital circuits can be better separated.
- ROTARY ENCODER - It has been added the rotary encoder, makes parameter adjustment quicker and easier.
- ASSEMBLED FINISHED - AUKUYEE Q15001 oscilloscope is an Assembled finished Machine. NOT DIY PART, it can be used directly to avoid assembling welding process problems and greatly saves the assembly time.
- WHAT YOU GET - You will get an assembled oscilloscope, BNC-clip cable and a power pupply. Detailed Operation instructions troubleshooting guide and schematic are also provided.

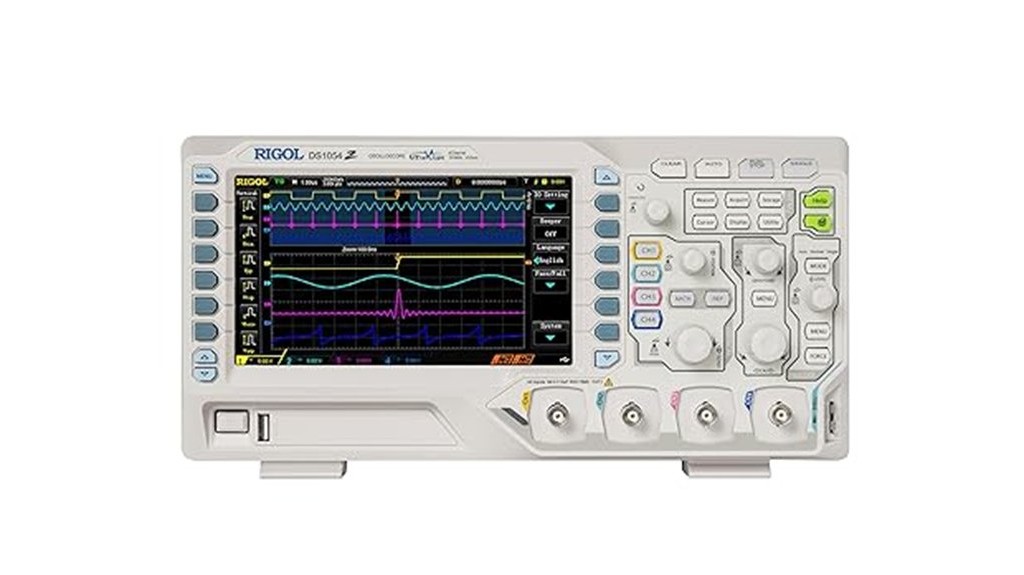

Rigol DS1054Z Digital Oscilloscope 50 MHz DSO 4 Channels
If you’re looking for a digital oscilloscope that packs a punch, the Rigol DS1054Z’s 50 MHz bandwidth and 4 channels make it an excellent choice, because it can handle a wide range of applications. You’ll get up to 30,000 wfms/s waveform capture rate and a 7-inch WVGA display. It’s also equipped with USB, LAN, and Aux connectivity options, making it easy to transfer data and connect to other devices.
- 【Core Specs】50 MHz digital oscilloscope with 4 analog channels, up to 1 GSa/s (single-channel) sample rate and standard memory depth up to 24 Mpts (12 Mpts dual-channel, 6 Mpts 3/4-ch) for long captures.
- 【UltraVision Capture】Up to 30,000 wfms/s capture rate and intensity graded display help reveal intermittent events; waveform recording/playback up to 60,000 frames supports fast review of trigger-related anomalies.
- 【Trigger & Decode Tools】Rich trigger set plus serial bus trigger/decoding for RS232/UART, I2C and SPI; FFT and filters support basic frequency-domain checks during troubleshooting.
- 【Connectivity & Remote】Standard interfaces include USB Host, USB Device, LAN (LXI) and AUX output (TrigOut/PassFail) for bench integration and documentation workflows.
- 【Applications】Digital oscilloscope for electronics debugging, teaching labs, and power/embedded bring-up where deep memory and capture rate help keep both global timing context and waveform detail.
Factors to Consider When Choosing Digital Oscilloscopes
When you’re choosing a digital oscilloscope, you’ll need to assess your bandwidth requirements, as they’ll impact the scope’s ability to accurately measure signals. You’re also looking at the sampling rate, which determines how often the scope takes measurements, as well as the display type, which can be LCD, LED, or other formats. You’ll evaluate trigger options, such as edge, pulse, or slope triggering, and decide on a power source, which can be a battery, USB, or mains power, to guarantee it meets your specific needs.
Bandwidth Requirements
Your choice of digital oscilloscope’s bandwidth determines the maximum frequency of the signals it can accurately measure, with higher bandwidths allowing you to capture more detailed waveforms. You’ll want to choose an oscilloscope with a bandwidth of at least 2-3 times the frequency of the signal being measured. Bandwidth requirements vary by application, so consider your specific needs. Higher bandwidths increase the cost, so it’s essential to balance your needs with your budget. You should consider the type of engineering you’re doing, as different fields require different bandwidths, to guarantee you get the right oscilloscope.
Sampling Rate
Choosing a digital oscilloscope requires considering the sampling rate, as it directly affects the accuracy of signal capture. You’ll want a higher sampling rate for high-frequency signals. A general rule of thumb is to have a sampling rate at least 2-3 times the maximum frequency of interest. Real-time sampling rates, like 1.25 GSa/s, enable real-time waveform capture. When selecting a digital oscilloscope, consider your specific application and signal frequency range. A higher sampling rate requires more memory, so it’s essential to balance these factors for accurate signal measurement. This guarantees you get the right oscilloscope for your needs.
Display Type
A digital oscilloscope’s display type plays a crucial role in helping you visualize and interpret waveforms accurately. You’ll want a high-resolution display with a large number of pixels, such as 800×480 or higher. The display type, like TFT or LCD, affects visibility and readability. A touch screen can provide an intuitive interface. Consider the refresh rate, measured in frames per second, for a smooth display. The size of the display, typically measured in inches, influences usability and portability. You’ll want a balance between size and portability to easily read waveforms. Larger displays often provide more detailed waveforms.
Trigger Options
Trigger options are a critical factor in selecting digital oscilloscopes, as they enable you to capture specific signals or events. You can choose from edge, pulse, or level triggering, depending on your needs. Edge triggering captures signals based on rising or falling edges, while pulse triggering captures signals based on pulse width. Level triggering captures signals when they cross a specified voltage threshold. You can also set the trigger mode to single shot, normal, or auto, allowing for flexible signal capture. This flexibility helps you detect intermittent faults or capture single events with ease.
Power Source
When you’re out in the field, capturing specific signals or events with your digital oscilloscope’s trigger options is just the beginning – you’ll also need a reliable power source to keep your device running. You’ll want a power source that’s portable and convenient, like a rechargeable lithium battery. Battery life can range from 4 to 20 hours, depending on the mode. Look for a Type-C charging interface for easy recharging. Consider a power source with autonomy, rechargeability, and power-saving features to guarantee uninterrupted use. This will help you work efficiently in various environments.
Frequently Asked Questions
What Is an Oscilloscope Used For?
You use an oscilloscope to measure and visualize electrical signals. It helps you analyze voltage, frequency, and waveform. You’re able to troubleshoot and diagnose issues in electronic circuits. You can also use it to test and validate circuit designs, making it a vital tool for engineers and hobbyists alike, and you’ll find it’s essential for many projects.
How Much Do Oscilloscopes Cost?
You’ll find oscilloscopes costing between $50 and $5,000. You’re paying for features, so basic models won’t break the bank, but high-end ones will. You can expect to spend around $200-$500 for a decent entry-level scope. You’ll get more advanced features as you spend more, so it’s worth considering what you need before making a purchase, don’t you think?
What Is Sampling Rate?
What’s the point of measuring signals if you can’t capture them accurately? You’re looking at sampling rate, which is how often an oscilloscope takes measurements. You’ll want a high rate to capture detailed waveforms. You’re checking the specs, and it’s usually measured in samples per second (sps) or gigasamples per second (Gsps).
What Is Bandwidth in Oscilloscopes?
You’re looking at bandwidth in oscilloscopes, which refers to the frequency range it can accurately measure. You’ll find it’s the maximum frequency an oscilloscope can handle, usually measured in Hz. You need to take into account when choosing an oscilloscope, as it affects the device’s ability to capture signals accurately, and you don’t want to compromise your measurements, so you choose wisely.
Are Used Oscilloscopes Reliable?
You’ll find used oscilloscopes can be reliable if you’re buying from a reputable seller. You’re checking the device’s history and testing it before purchasing. You’re also looking for certifications like calibration records. You’re getting a good deal, but you’re not compromising on quality. You’re still getting a reliable tool for your needs.
Conclusion
You’ve navigated the domain of digital oscilloscopes, and it’s time to make a “judicious investment” in the one that “suits your refined needs”. By weighing the “pertinent factors”, you’ll “elevate your workflow” and uncover the perfect tool to “streamline your endeavors”. Your discerning choice will certainly “yield a fruitful partnership” with your chosen digital oscilloscope.
